Solar Panels


The Photovoltaic (PV) cells, also known as solar cells and panels are both integral, closely connected parts of your solar PV system. PV cells are the main component that makes up a solar panel. PV cells convert sunlight into direct current (DC). The cells linked together in a sequence, between light absorbent encapsulation materials from the front and the rear, melted during the lamination process to a tempered glass on top, and the polymer sheet from the rear becomes a single pane. When it is framed with durable anodized aluminum and connected electrically with a junction box it becomes a solar panel. The solar panels are the most vital component of a solar PV system and the major part of your investment.

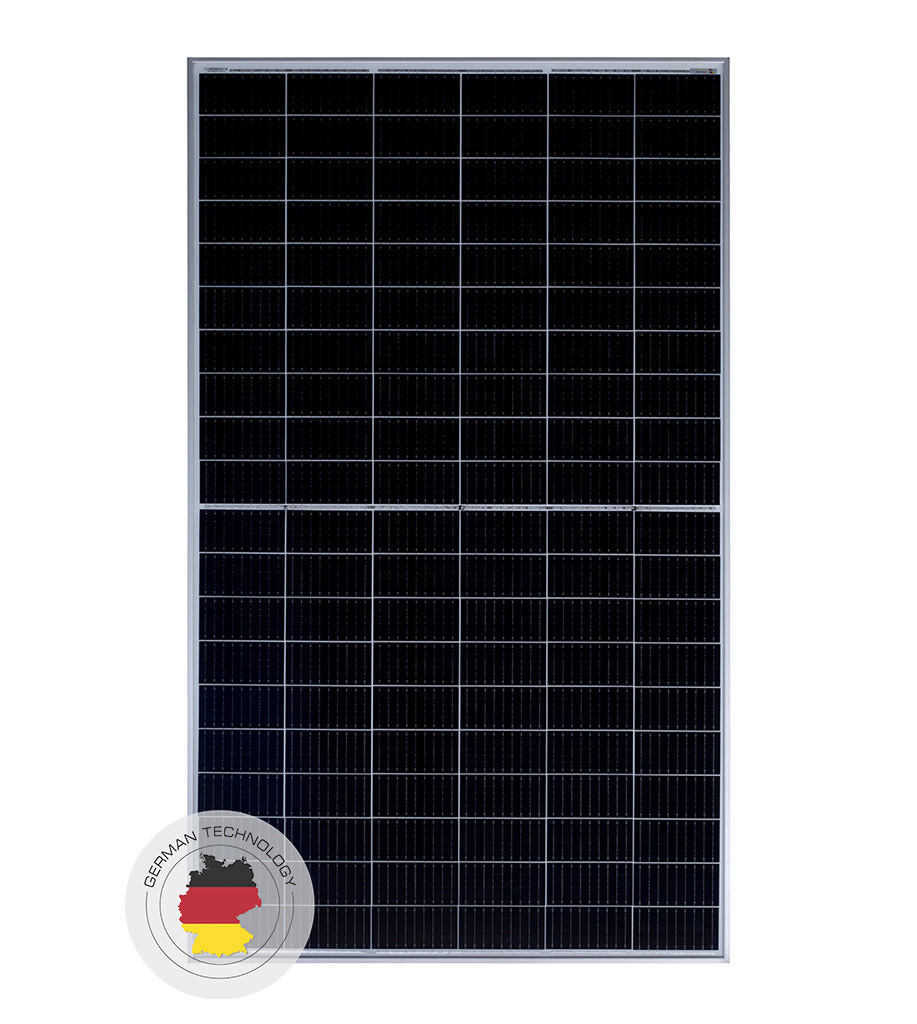

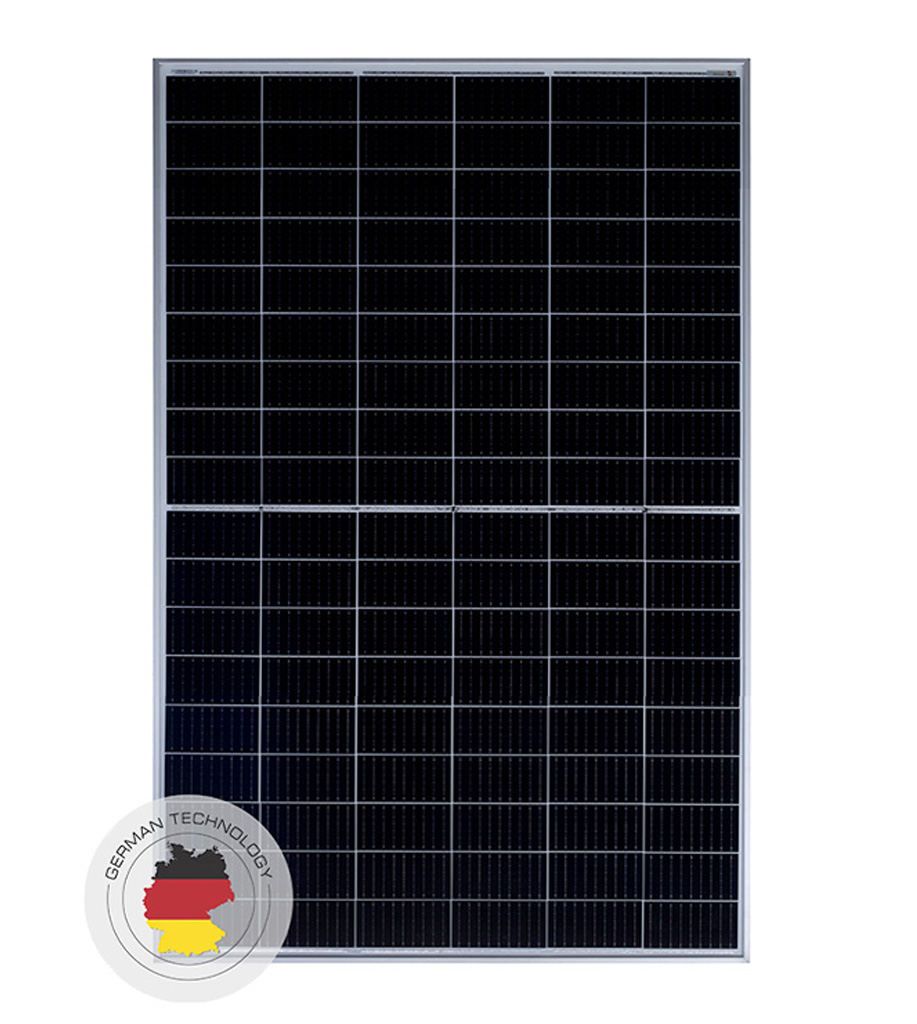

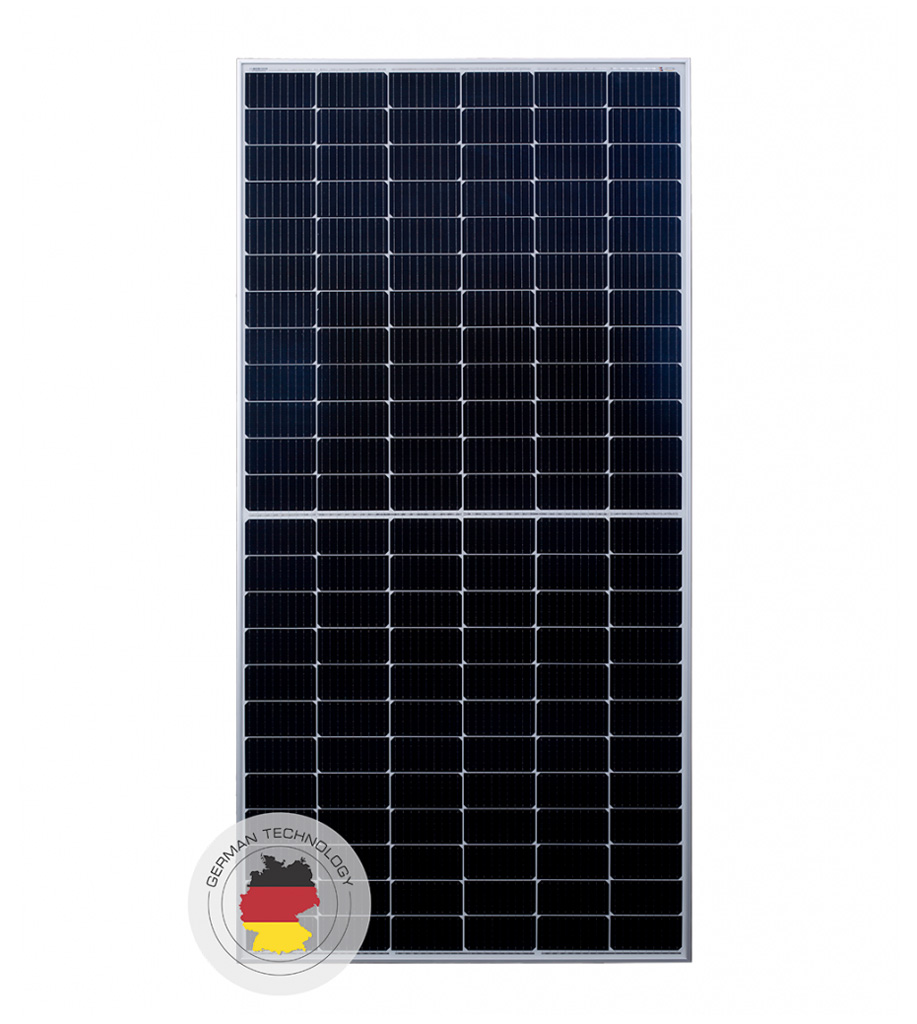

Explore the Solar Island’s latest M10 wafers 182mm Mono-PERC Aurora series solar panels produced for different application purposes in 2022 in the most reliable German technology;

Cell type - Mono-PERC HC with MBB

Power range - 395 to 415Wp

Module efficiency – 21.25% STC

Dimension – 1724 x 1133 x 35mm

Weight – 21.5 Kg

Product warranty – 15 years

Performance guarantee – 30 years

Recommended Application; For Domestic Rooftops

Cell type - Mono-PERC HC with MBB

Power range - 440 to 460Wp

Module efficiency – 21.26% STC

Dimension – 1910 x 1133 x 35mm

Weight – 24 Kg

Product warranty – 15 years

Performance guarantee – 30 years

Recommended Application; For Domestic & Commercial Rooftops

Cell type - Mono-PERC HC with MBB

Power range - 485 to 505Wp

Module efficiency – 21.3% STC

Dimension – 2094 x 1133 x 35mm

Weight – 26 Kg

Product warranty – 15 years

Performance guarantee – 30 years

Recommended Application; Commercial & Industrial Rooftops

Cell type - Mono-PERC HC with MBB

Power range - 530 to 560Wp

Module efficiency – 21.31% STC

Dimension – 2278 x 1133 x 35mm

Weight – 27 Kg

Product warranty – 15 years

Performance guarantee – 30 years

Recommended Application; For Ground Mounting Projects


Solar Inverters


The Solar Inverter of your PV system does a vital role. The DC that flows from your solar panels is converted to a usable alternative current (AC) by the Inverter. It then connects with your home electricity network and the excess electricity is exported to the national grid bringing you revenue. You can monitor how much energy is generated by your solar PV system using the online monitoring web portal provided by the Inverters.


Explore our Inverter options for Off-grid, On-grid, and Hybrid solar PV system solutions;

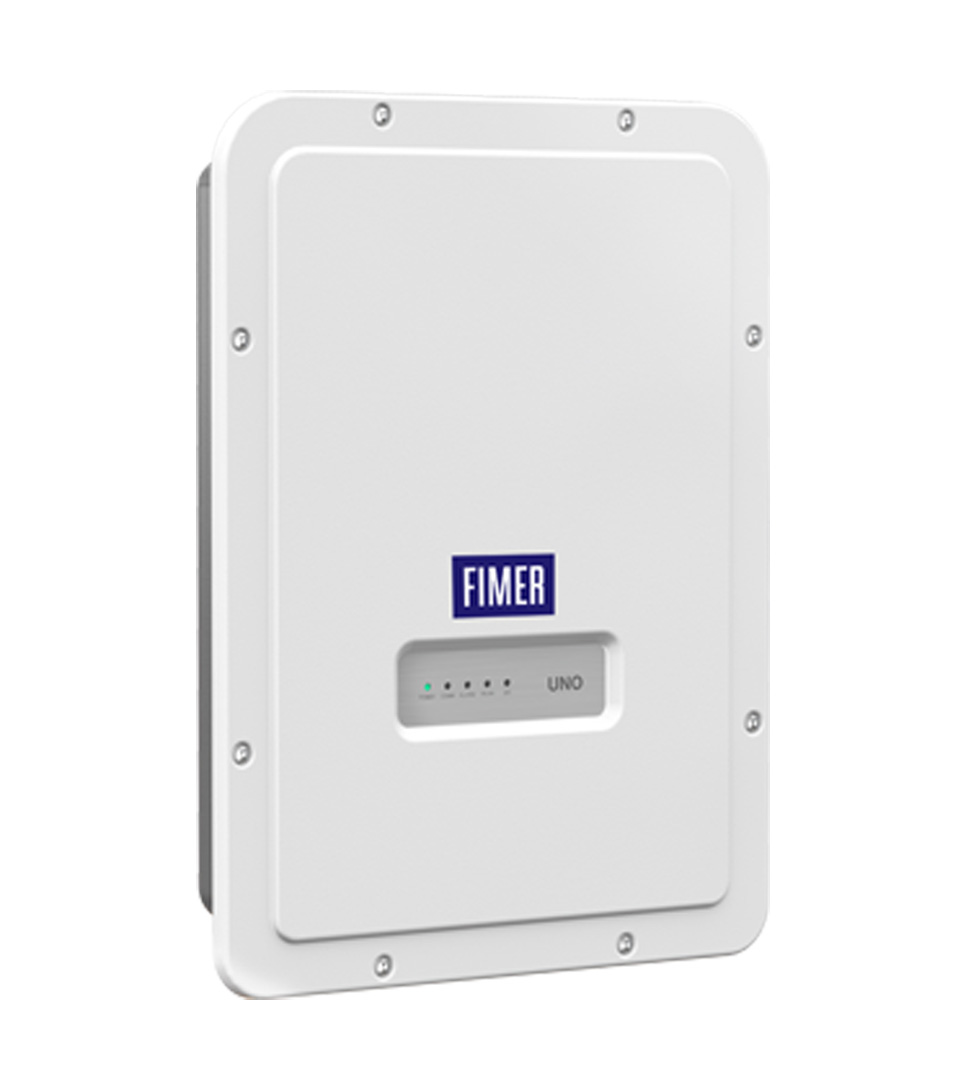

FIMER ON-GRID INVERTERS


ABB -FIMER


ABB brand which transformed into the FIMER is one of the top quality European Inverter brands widely accepted in the Sri Lankan PV Industry. Its performances, safety standards, and adaptability in the field thrived it is undoubtedly the first preference of all grid-tied system investors in the country.

Deye ON-GRID INVERTER

Deye

Deye is a reputed brand name for high-tech, and one of the most versatile Inverters ever produced in China for high-end market segments in the global PV industry, especially for the USA, Europe, and the Asia Pacific regions. Deye On-grid and Hybrid Inverters are the best value for money. The Deye Inverters are merging as one of the fast-selling brands currently for its higher performance, durability, trustworthy warranty terms, and customer-friendly aftersales services among the system owners, and installers worldwide.

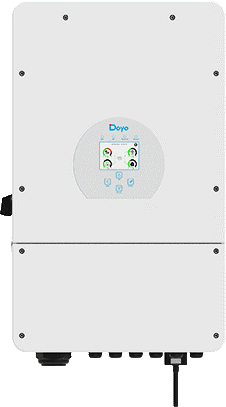

Deye HYBRID INVERTERS

Moving one step further from the On-grid Inverters’ typical job, the hybrid Inverters will work with batteries to store the excess power. In the developing world, hybrid Inverters are more of a necessity to compensate for weak or intermittent grid or a lack of grid electricity altogether. Deye hybrid Inverters include single-phase 3kW to 8kW and Three-phase 8kW to 12kW, and all of them adopt 48V batteries developed by the Deye.

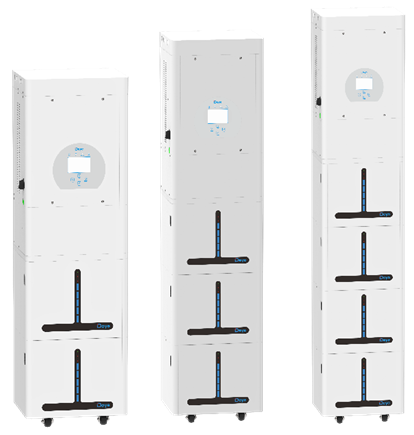

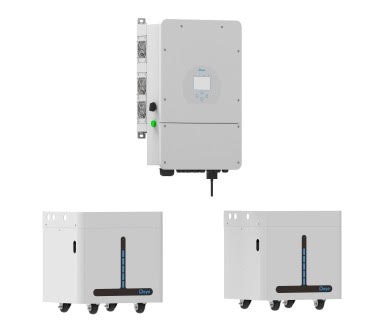

Deye ALL-IN-ONE ESS


Deye ’s all-in-one energy storage system – ESS, is more than a power station for your house or business institution. It is unique at your lobby or living room in a form of a household appliance. It includes powerful Deye hybrid inverters from 3.6 kW to 8 kW single-phase or 5 kW to 12 kW three-phase. 1 to 4 pieces of 4.91 kWh stackable, and equipped with the safest LiFePO4 batteries that are guaranteed over 10 years of lifespan.

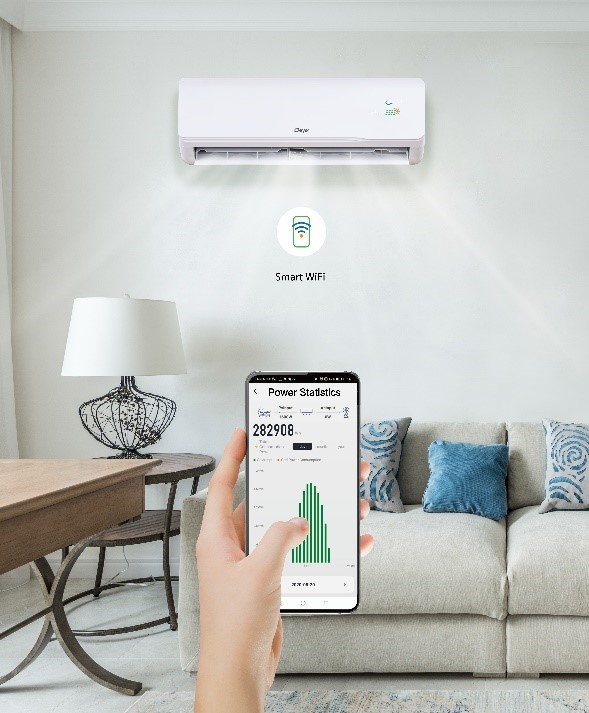

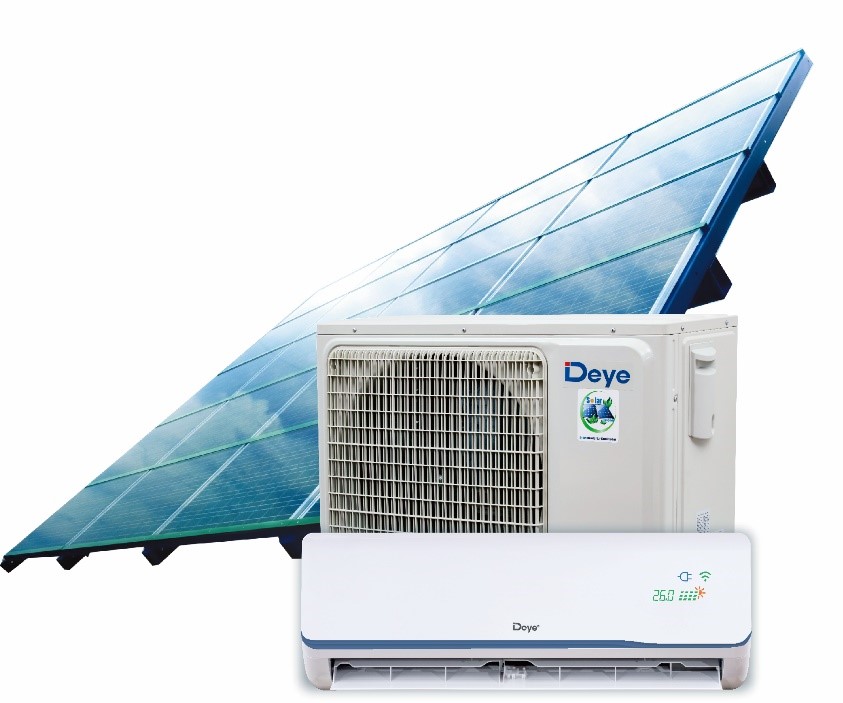

HYBRID AC/DC SOLAR AIR CONDITIONERS


Deye hybrid ACDC solar air conditioners require no Battery storage, and only a few PV panels to deliver huge savings. During the day, when air conditioning is needed the most, you can operate this unit partly or up to 100% by its independent solar panels to achieve maximum efficiency. At night, you can continue to save due to its high efficiency.

The WIFI functionality allows full control, daily and weekly timers, complete visibility with AC and DC consumption, and all power consumption history.

Your Benifits

  • Efficient brushless DC permanent magnet variable frequency twin rotary compressors
  • Can run directly on 100% solar power during the daytime
  • AC Limiter will limit the AC consumption to 100w when DC power is available and slightly more when there is no DC
  • Wide ambient operating temperature range -10°C to +58°C
  • Anti-Corrosion Technology gives greater corrosion resistance for both outdoor and indoor units
  • Eco-Friendly R410a Refrigerant
  • Mc4 Solar connector terminals - Easy plug and play connection and maintenance
  • Low energy consumption, and quiet Indoor Unit (As low as 26dB)

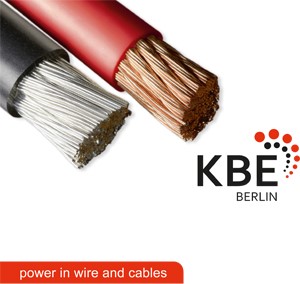

PREMIUM SOLAR CABLES

Our premium KBE-Berlin solar cables – Made in Germany, are triple certified with the European standard EN 50618, the international solar cable standard IEC 62930 (IEC 131), and the TÜV standard 2Pfg 1169/10.2019 (PV 1500-K). This guarantees excellent technical properties, high security, and long service life of at least 25 years. It can be buried naked underground. Higher UV resistance. 100% water-resistant. Greater mechanical stability and temperature resistance.


USFULL SWITCHGEAR SOLUTION


USFULL is a well-recognized solar accessory and low voltage electrical components brand in China. After years of efforts in technical research & development – R&D, USFULL achieved international recognition with the certifications of ISO9001, CE, IEC, TUV, and for its products currently being used in more than 90 countries. We @Solar Island, are pleased to introduce their high-quality products to Sri Lankan PV Industry at value for money.

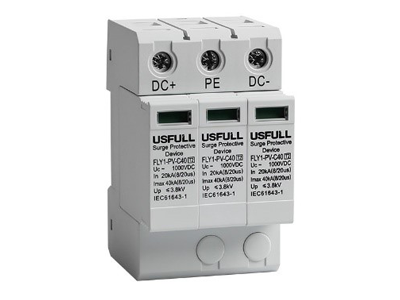

DC SPDs

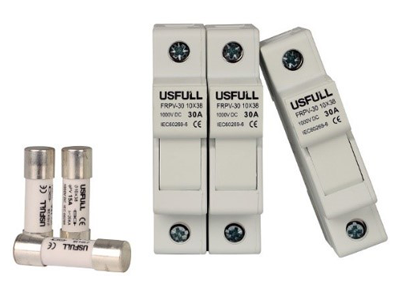

DC Fuses

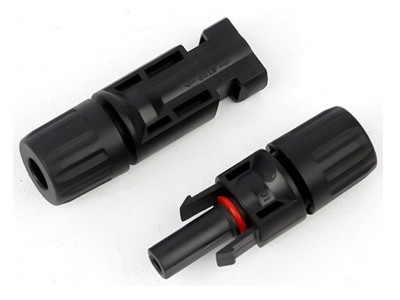

MC4 Connectors

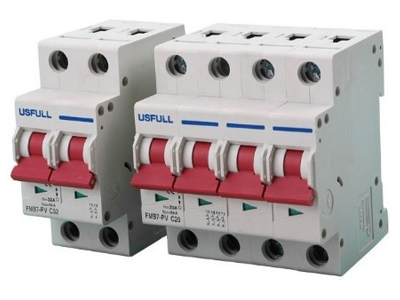

DC MCBs

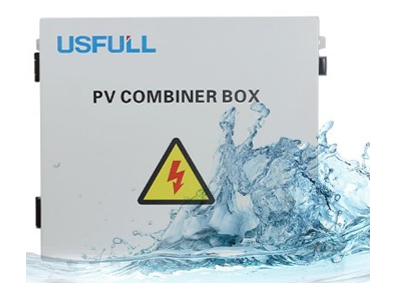

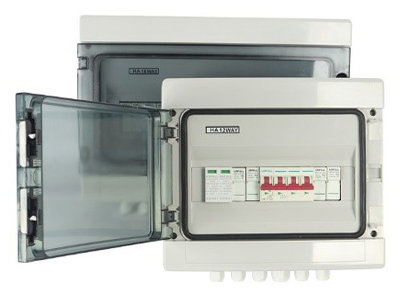

Plastic Combiner Boxes IP-68

Metal Combiner Boxes IP-68

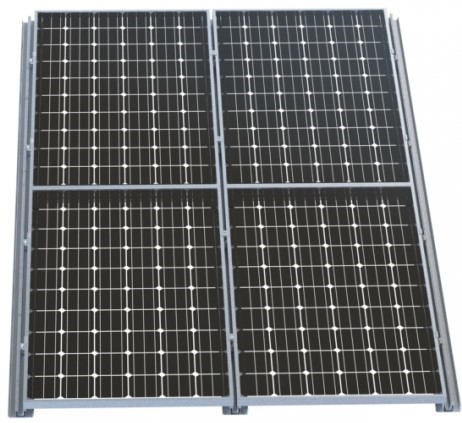

BIPV RAILING SOLUTIONS

Solar Island brings you one of the most advanced BIPV mounting solutions to get rid of the metal sheet which many other primary BIPV solutions adopt. Using the metal sheets under panels increases the cost and is not the real BIPV solution. Our solution greatly cuts off the installation time and lowers the cost, making the final installation appearance much better, and aesthetic satisfaction for architects.

Contact

We assist you to find out your best solution to enjoy the long-lasting solar energy investment.
